PTP 550 – 6 GHz Unlicensed Band Solution featuring DCS & AES – 1.36 Gbps, 4.910 – 5.950 GHz , 802.11ac, Wave 2 MU-MIMO 4×4 (C050055H017A) CAMBIUM NETWORKS PTP550-CE
PTP 550 – 6 GHz Unlicensed Band Solution featuring DCS & AES – 1.36 Gbps, 4.910 – 5.950 GHz , 802.11ac, Wave 2 MU-MIMO 4×4 (C050055H017A)
$611.74
- Description
- Additional information
Description
 Available Stock USA  |
|---|
PTP550 Connectorized
4.910 – 5.950
GHz1.4
GbpsDynamic spectrum optimization
(DSO) 2 x N-Type female
connectors
PTP 550 – 6 GHz Unlicensed Band Solution featuring DCS & AES
Point-to-Point Gigabit+ Capacity

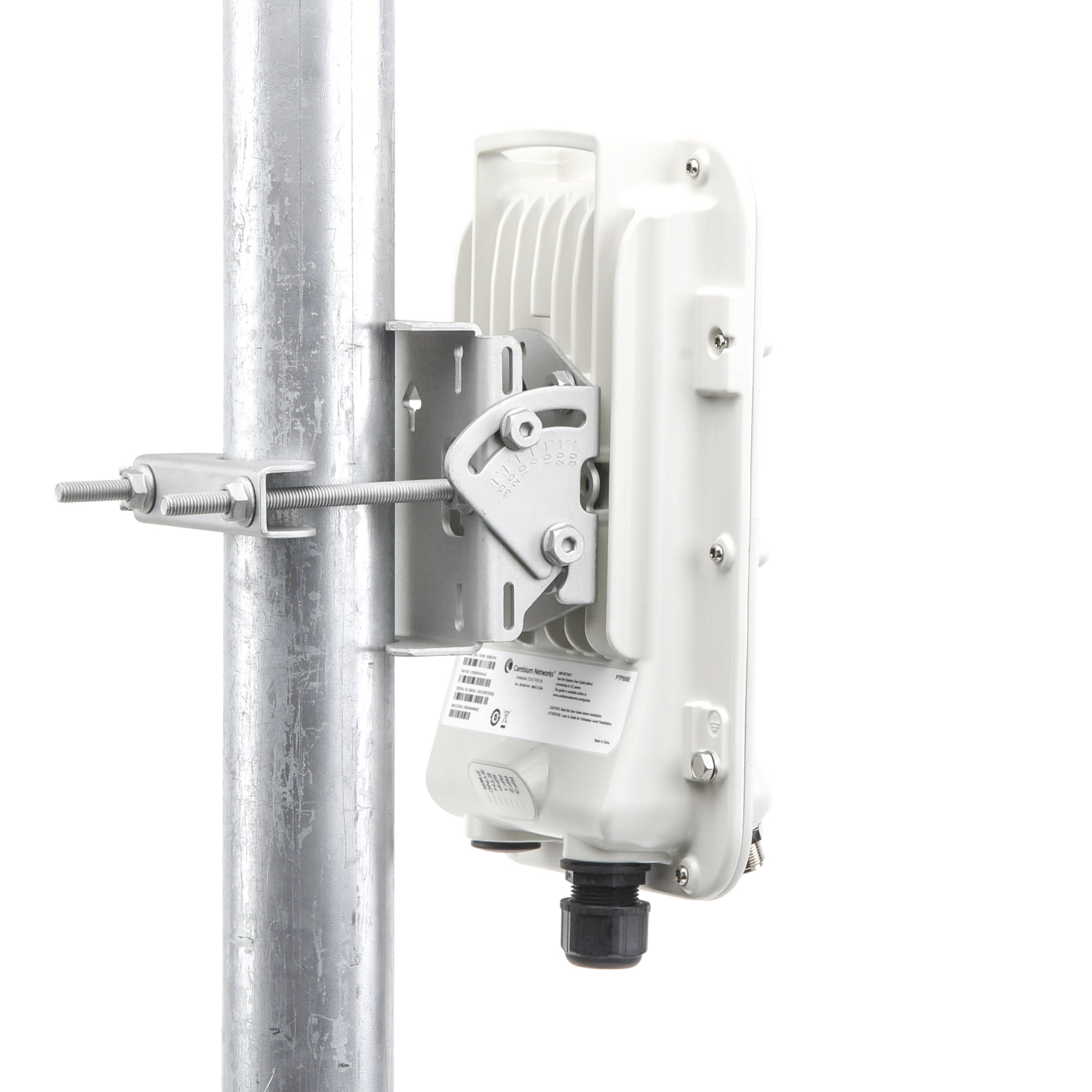

PTP 550 is a Point to Point Gigabit throughput solution based on 802.11ac Wave 2 operating in 5 GHz wireless space, addressing the gigabit capacity needs for high speed backhaul solutions in short range and middle range applications provides up to 1.36 Gbps throughput with ARQ and asymmetric non-contiguous channel aggregation across 5 GHz band. The PTP 550 solution draws its attributes from Cambium Networks’ Point to Point products such as PTP 650/670 and PTP 450i. Each PTP 550 radio is enclosed in a rugged IP66/67 rated metal enclosure, which protects the radio from extreme conditions and solar radiation.
PTP 550 Features Dynamic Channel Selection (DCS), AES, Carrier Aggregation & 1.4 Gbit Capacity
| RF BANDS | 4.910 to 5.950 GHz |
| CHANNEL SIZES | 2 x ( 20 , 40, 80 MHz) |
| SPECTRAL EFFICIENCY | 8.5 bps/Hz |
| CHANNEL SELECTION | Fixing frequency or DSO* |
| MAXIMUM TRANSMIT POWER | Up to 27 dBm |
| DUST- WATER INTRUSION PROTECTION | IP66 – IP67 -40° to +140° F (-40° to +60° C), |
| ETHERNET BRIDGING PROTOCOL | IEEE 802.3 |
| LATENCY | 0.15 – 0.19″ (4-5 ms) |
| MAX PACKET SIZE | 1700 Bytes |
| FLEXIBLE I/O | 1 Gigabit Port: Data + PoE power input 1 SFP port (single-mode fiber, multi-mode fiber, and copper Gigabit Ethernet options available) |
| DUPLEX SCHEME |
Time Division Duplex (TDD) |
| DIMENSIONS | Width 278mm (11”), Height 185mm (7”), Depth 88mm (3.5”) |
| WEIGHT | Connectorized ODU: 1.6 kg (3.5 lbs) including bracket |
| POWER SUPPLY | AC power injector: 32° to 104° F (0° to +40° C); 35 W; 90-240 VAC, 50/60Hz |
| POWER CONSUMPTION | 30 W maximum |
Additional information
| Dimensions | 22 × 45 × 24 foot |
|---|---|
| Created: | 21/11/2024, 9:13 PM |
