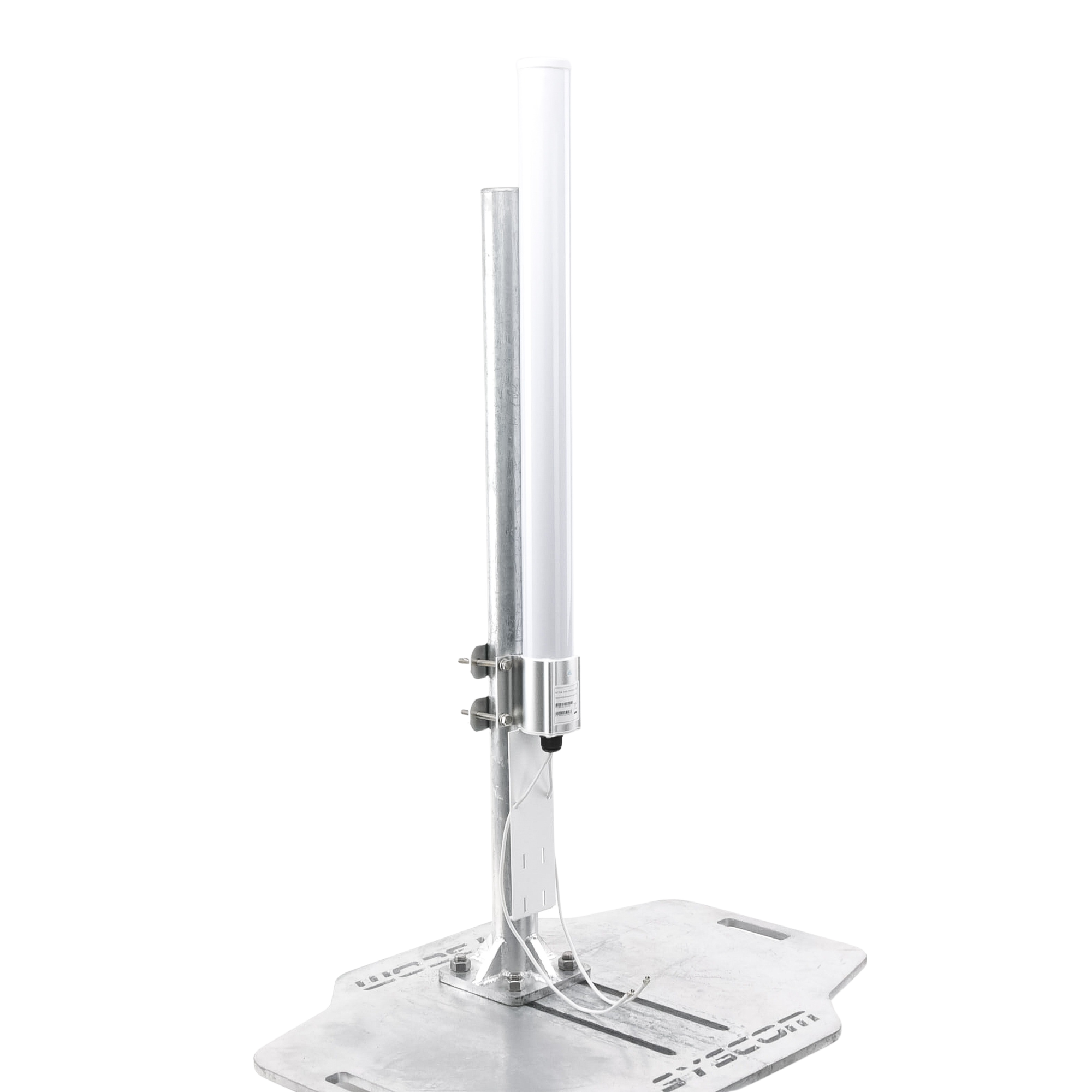

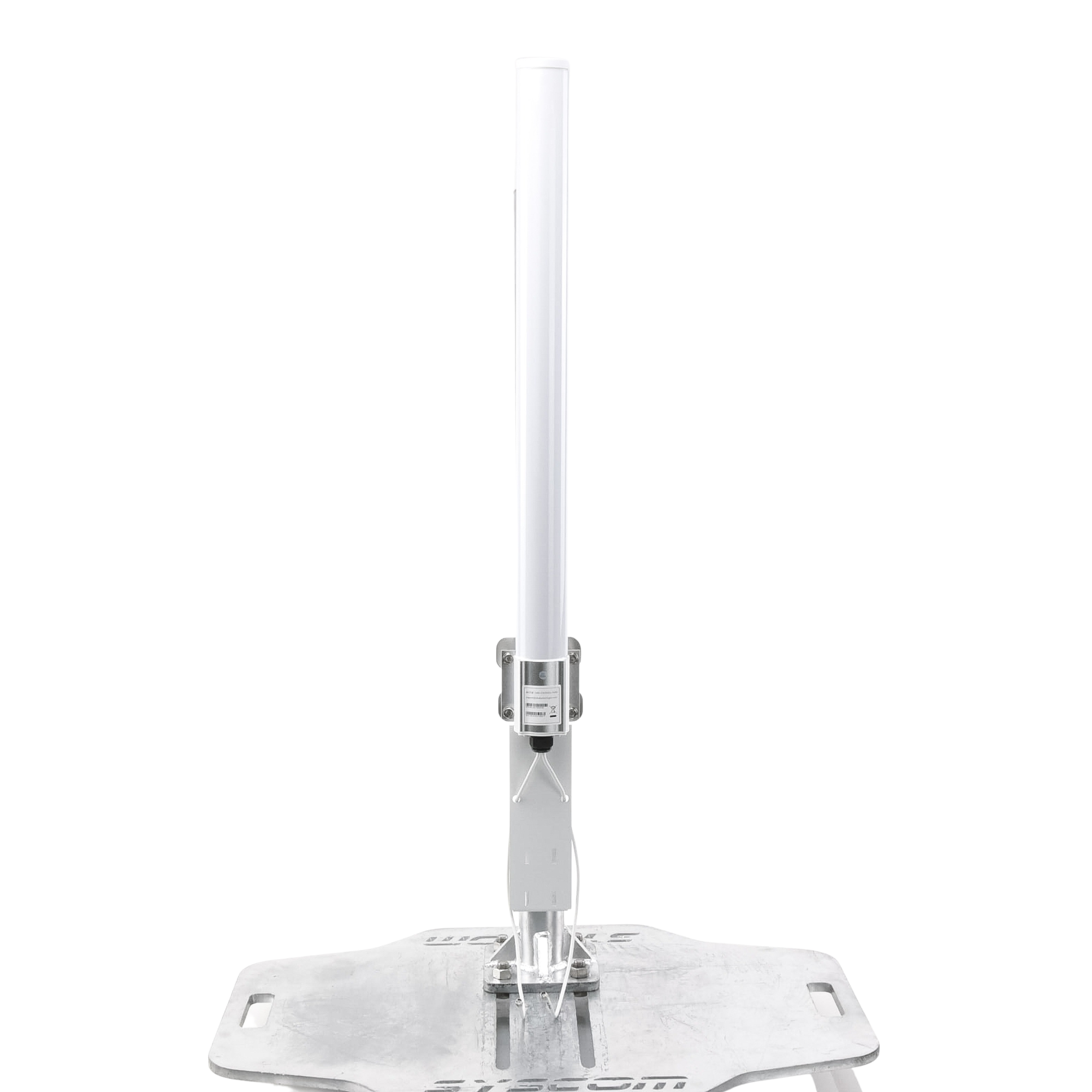

2.4GHz, 10dBi, dual pol omni antenna, 2x50cm RF cable with RP-SMA connectors, with mounting (for C1xn/CX200/VX200) ALTAI TECHNOLOGIES SD.AN-2M10-00

Description

Available Stock USA

 Electrical Specifications

• Frequency Range 2.3 – 2.5 GHz

• Gain 10 dBi

• Polarization Dual Linear

• Horizontal Beamwidth 360º

• Vertical Beamwidth 7º

• Downtilt 1º

• VSWR 2.0 (Max.)

• Impedance 50 Ω

• Lightning Protection Direct Ground

 Environmental and Mechanical Specifications

• Temperature -55 °C to +70 °C

• Humidity 95% (Non-condensing)

• Wind Loading Up to 200 km/h

• Weatherproof IP55

• Radome Color White

• Radome Material PVC, UV Resistant

• Weight 4 kg

• Dimensions 1200 x Ø70 mm

• Connector 2 x RP-SMA

• Mounting Pole,( Ø30 – 70mm)
